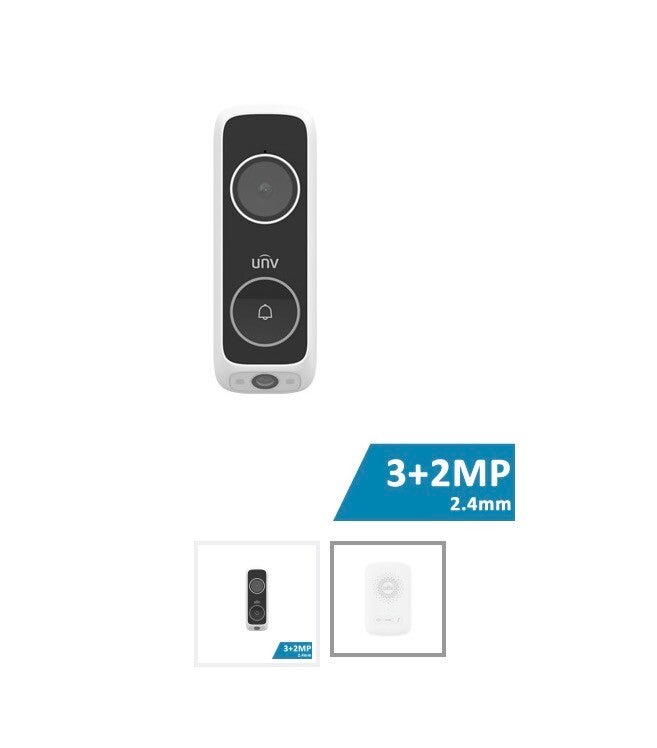

UNIVIEW DUAL LENS DOORBELL (WIFI, MIC, SPEAKER)
Part of the UNV range, this doorbell camera has a 3MP front-facing camera for observing visitors and a 2MP downward-facing camera to monitor the ground for parcels. Supporting Ultra265 compression, up to 5m of IR range and up to 2m of White Light. This doorbell has a built-in speaker and microphone, allowing for 2-way communication. It has built-in 8GB of eMMC storage, which records events, and can also be connected to a Uniview NVR. It can support up to 3 Uniview chimes (1 supplied).
- Main Camera, 3MP with Viewing Angle 116° (H)
- Sub Camera, 2MP with Viewing Angle 96.8° (H)
- Up To 5m IR Range
- Up to 2m of White Light
- Built-in Microphone and Speaker
- Human body and parcel detection

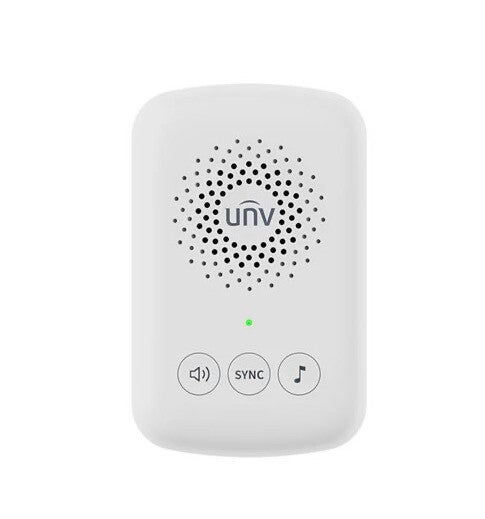

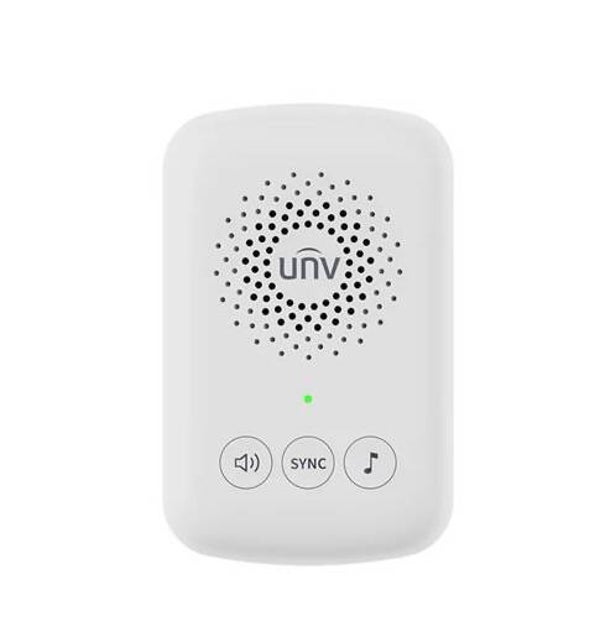

- Supports Sub-1GHz chime (1 supplied, supports up to 3)
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- WDR, OSD, Dual Streams
- Supports H.264 and H.265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP65 Rated
Technical Specifications
Classification Video Doorbell
Installation method Outdoors
Compatibility Operates with NVR or Hub 2/2 Plus/Hybrid/BP
Maximum resolution 2560 x 1440 at 25fps
Lens Fixed 2.8mm
Angle of view Horizontal: 155° Vertical: 90°
Storage NVR or Ajax Cloud
Motion detection Up to 4m (using a PIR sensor)
Horizontal: 120°
Vertical: 100°SpeakerOutput power: 1.5W
Volume: 85dBSupported compressionH.264
Dynamic ranges HDR WDR
Infrared Up to 6m
Power 12-24V DC 6-24V ACWi-Fi802.11 b/g/n 2.4GHz
Operating temperature -25°C to +60°COperating humidityUp to 90%Protection classIP54
Colours
White (RAL 9003)
Grey (RAL 7004)
Graphite (RAL 7024)
Black (RAL 9005)Weight163gDimensions145mm x 47mm x 34mm
