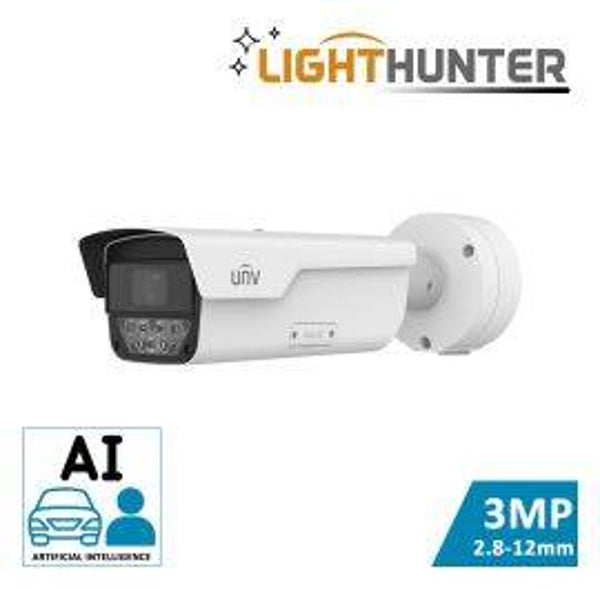

Licence Plate IP Camera (3MP, ANPR, Alarms)

Licence Plate IP Camera (3MP, ANPR, Alarms)
£549.00
Item number: 3MP ANPR CAM

Part of the UNV professional range, this ANPR (Automatic Number Plate Recognition) IP camera boasting an impressive 3 megapixel HD recording resolution and a motorised 2.8-12mm auto-focusing lens. This camera has the LightHunter chipset, allowing for incredible imagery at night. Supporting H.265 compression and 50m of IR range.

- Vehicle Detection & Number Plate Recognition (see Special Features)
- Resolution 3MP (2304 x 1296), POE
- Motorised 2.8-12mm Lens
- Smart IR, Up To 50m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Boolean 2 In/1 Out, RS-485
- MicroSD Card Slot (see Special Features)
- WDR, OSD, Triple Streams, ONVIF
- Supports H.264, H.265
- Temperature Range -40°C to 60°C
- Wide voltage range of ±25%
- IP67

Camera

Image Sensor:

LightHunter CMOS (1/2.8")

Resolution:

3MP

Effective Pixels (H x V):

2304 x 1296

TV System:

PAL / NTSC

Shutter Speed:

Auto/Manual, 1/30~1/100000s

Signal-to-noise Ratio:

≥52dB

Iris:

Electronic

Back Light Compensation:

Via OSD Menu

Wide Dynamic Range:

120dB

Digital Noise Reduction:

2D/3D

Gain Control:

Auto

Sync Mode:

Internal

White Balance:

Auto/Manual

Lens:

Motorised 2.8-12mm Lens

Scanning:

Progressive Scan

Onboard Recording:

MicroSD card up to 128GB





Day/Night

Day & Night:

IR Cut Filter (Smart IR)

Minimum Illumination:

Colour 0.005Lux, 0Lux with IR on

IR Range:

45-50m

IR Control:

CDS Auto





Network

Ethernet:

RJ45 10/100

Supported Protocols:

IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL

ONVIF:

Supports ONVIF (Profile S)

POE:

Yes

Main Stream:

2304x1296@30fps

Sub Stream:

1280x720@30fps





General

Power:

12V DC (+/- 25%) / PoE (IEEE802.3at)

Housing:

Metal

Power Consumption:

Max ≤20W

Operating Temperature:

-40°C ~ +60°C

Operating Humidity:

0% - 90% RH

Ingress Protection:

IP67

Approvals:

CE / FCC

Weight:

1.65kg





Interface

Audio I/O:

Microphone in (x1), Audio line out (x1)

Alarm I/O:

Boolean input (x2), Boolean output (x1)



This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter

LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



LPR (License Plate Recognition)

LPR is the ability to automatically analyse video to detect vehicles and number plates. This camera has the capability to do the following:

  • Vehicle detection and recognition
  • Trigger mode: Video detection, Inductive loop detection, video-loop detection
  • Support for number plate cutout, overview picture snapshot and video recording
  • Built-in database to whitelist/blacklist vehicles, and to control barriers
