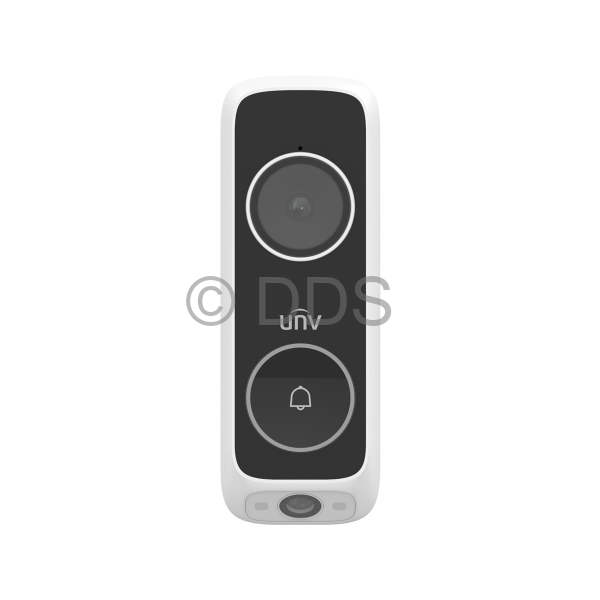

Uniview Dual Lens Doorbell (WiFi, Mic, Speaker)
Part of the UNV range, this doorbell camera has a 3MP front-facing camera for observing visitors and a 2MP downward-facing camera to monitor the ground for parcels. Supporting Ultra265 compression, up to 5m of IR range and up to 2m of White Light. This doorbell has a built-in speaker and microphone, allowing for 2-way communication. It has built-in 8GB of eMMC storage, which records events, and can also be connected to a Uniview NVR. It can support up to 3 Uniview chimes (1 supplied).
- Main Camera, 3MP with Viewing Angle 116° (H)
- Sub Camera, 2MP with Viewing Angle 96.8° (H)
- Up To 5m IR Range
- Up to 2m of White Light
- Built-in Microphone and Speaker
- Human body and parcel detection

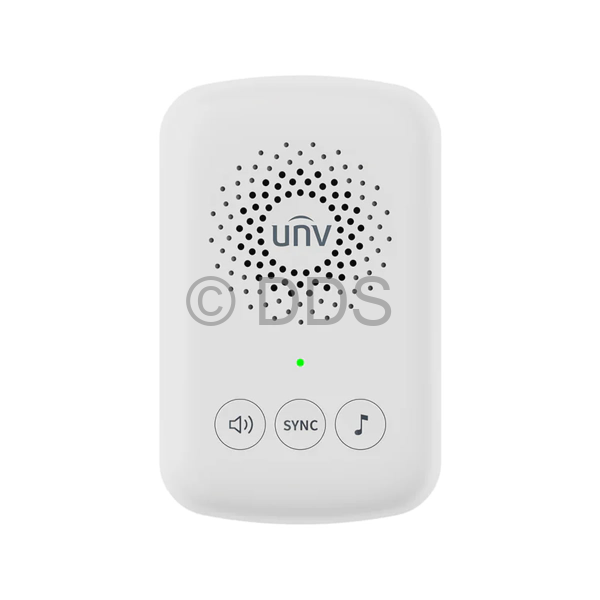

- Supports Sub-1GHz chime (1 supplied, supports up to 3)
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- WDR, OSD, Dual Streams
- Supports H.264 and H.265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP65 Rated
SPECIFICATION
Camera
Effective Pixels (H x V): Top: 2048 x 1536 | Bottom: 1920 x 1080
TV System: PAL / NTSC
Shutter Speed: Auto/Manual
Signal-to-noise Ratio: ≥52dB
Iris: Electronic
Wide Dynamic Range: 120dB
Digital Noise Reduction: 2D/3D
Gain Control: Auto
Sync Mode: Internal
White Balance: Auto/Manual
Lens: Fixed 2.4mm Lens
Field of View: Top: 116° | Bottom: 96.8°
Scanning: Progressive Scan
Onboard Recording: Yes, to built-in 8GB eMMC
Day/Night
Day & Night: IR Cut Filter (Smart IR)
IR Range: 5m
IR Control: CDS Auto
White Light Range: 2m
Network
Wi-Fi: IEEE 802.11b/g/n/ax
Supported Protocols: IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF: Supports ONVIF (Profile S)
POE: N/A
Main Stream: Top: 2048 x 1536@15fps Bottom: 1920x1080@25fps
Sub Stream: 704x576@25fps
Antenna : 2.4GHz / 5GHz
General
Power: AC 16-24V
Housing: Metal
Power Consumption: Max 10W
Operating Temperature: -30°C ~ +60°C
Operating Humidity: 0% - 95% RH
Ingress Protection: IP65
Weight: 142g
Interface
Built-in Microphone: Yes
Built-in Speaker: Yes
Reset Button: Yes
Control: Call Button
